Copy large files
With several fast NVMe SSDs together in software RAID on a USB4 port you reach up to about 3000 MB/s: a 20 GB folder is copied in about 7 seconds.
Switss® 4-bay M.2 NVMe enclosure
Four SSDs.
Up to 3000 MB/s.
- 4 M.2 NVMe slots
- USB4, 40 Gbps
- Software RAID
Four M.2 NVMe SSDs in one enclosure via USB4 (40 Gbps): up to about 3000 MB/s with several fast NVMe SSDs together in software RAID.
Note: SSDs not included.
Order before 16:00, delivered tomorrow
Switss® 4-bay M.2 NVMe enclosure
4 NVMe slots, USB4 40 Gbps, software RAID, up to 32 TB.
€229,99incl. VAT€190,07excl. VAT
Empty enclosure: you fit up to four M.2 NVMe SSDs yourself (M-key, 2230 to 2280). Which SSD fits?
Switss® 4-Bay M.2 NVMe SSD Enclosure USB4 40 Gbps with Fan
€229,99incl. VAT€190,07excl. VAT
In stock
SSDs not included
Check whether your SSD and computer fitUp to about 3000 MB/s only with several fast NVMe SSDs together in software RAID on a 40 Gbps USB4 port; on a 10 Gbps port around 1050 MB/s.
Is this right for you?
Fits if
- You have M.2 NVMe SSDs with M-key, 2230 to 2280
- Your computer has a USB-C port that transfers data
- You want to use up to four SSDs separately or together in software RAID
Does not fit if
- Your SSD is a SATA M.2 (M+B-key)
- Your SSD is longer than 80 mm, mSATA or 2.5 inch
What you need
- Your own M.2 NVMe SSDs: they are not included
- A small screwdriver
- A power socket: the power adapter is included
Check in three questions
Answer the questions above.
Not sure? Send a photo of your SSD or your computer model to info@pelkonic.com. We usually respond within one business day.
€229,99incl. VAT€190,07excl. VAT
Four SSDs in one fast enclosure.
Before you order: how it fits, how to set it up and whether it works with your laptop.
-
Will it fit? Four M.2 NVMe SSDs, 2230 to 2280
More detail
Will my SSDs fit?
NVMe M.2 SSDs with M-key fit, in sizes 2230 to 2280 and up to 8 TB per SSD. You can fit up to four SSDs. NVMe is the fast type of M.2 SSD; your SSD's specifications tell you which type you have. A SATA M.2 SSD does not work.
-
Easy to set up? SSDs in, adapter and cable in
More detail
Can I set it up myself?
You slide the tray out of the enclosure, place your SSDs and secure them with the silicone plugs; you need a small screwdriver for that. Then you connect the power adapter first and then the USB-C cable. You don't need drivers. Each SSD appears as its own drive; you combine them with software RAID on your computer, further down you can see how.
-
Your laptop? Full speed on USB4
More detail
Will it work with my laptop?
It works on Windows, macOS, Linux and Android. You get full speed, up to about 3000 MB per second with several fast NVMe SSDs together in software RAID, on a 40 Gbps USB4 port. On a 10 Gbps port you get around 1050 MB per second.
In use
Spare SSDs lying around?
Turn them into fast external storage
SSDs not included
4SSDsin one enclosure
40Gbpsvia USB4
32TBmaximum
M.2 NVMe SSDs only (M-key), 2230 to 2280; up to 8 TB per SSD
Compatibility
Fits M.2 NVMe SSDs
From 2230 to 2280, up to 8 TB per SSD
More detail

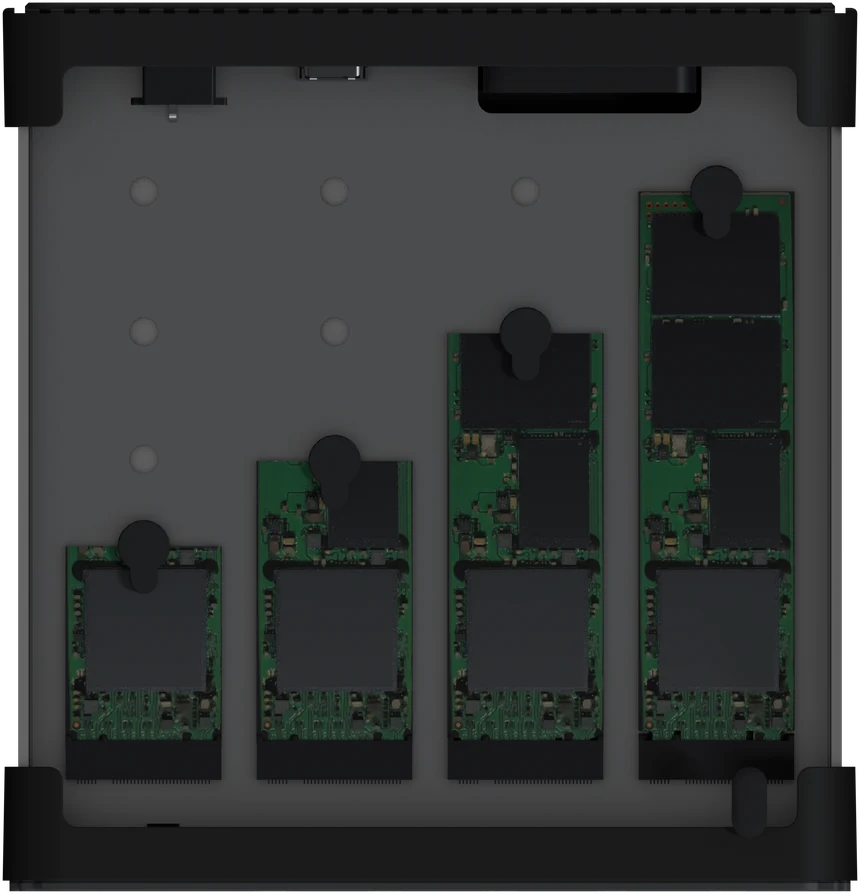

The holes for the plug
Each bay has four holes, one for each length: 2230, 2242, 2260 and 2280. Secure the end of your SSD with the silicone plug in the hole for that length: press it in and turn it.
Four lengths, one plug per SSD
SSDs not included
NVMe only
- NVMe M.2 SSD
- SATA M.2 SSD
Does your SSD say NVMe or PCIe? Then it fits
Put the plug in the hole that matches your SSD length
4lengths2230 to 2280
8TBper SSD
4baysnot all four needed
Cooling
Four SSDs, still cool
Heatsink and fan carry the heat away
More detail
How the heat gets out
The thermal pad sits between your M.2 SSD and the aluminium heatsink and passes the heat on. The cooling fins of the heatsink release that heat into the air, and the fan in the rear cap blows the warm air out.
Place the enclosure on a hard, flat surface and do not cover the ventilation openings.
How your SSDs stay cool
- aluminium enclosure
- cooling fins
- thermal pad
- your M.2 SSD
- fan
28finson the heatsink
4padsone on each SSD
Fan in the rear cap
blows the warm air out
Speed stays up
Even on long transfers

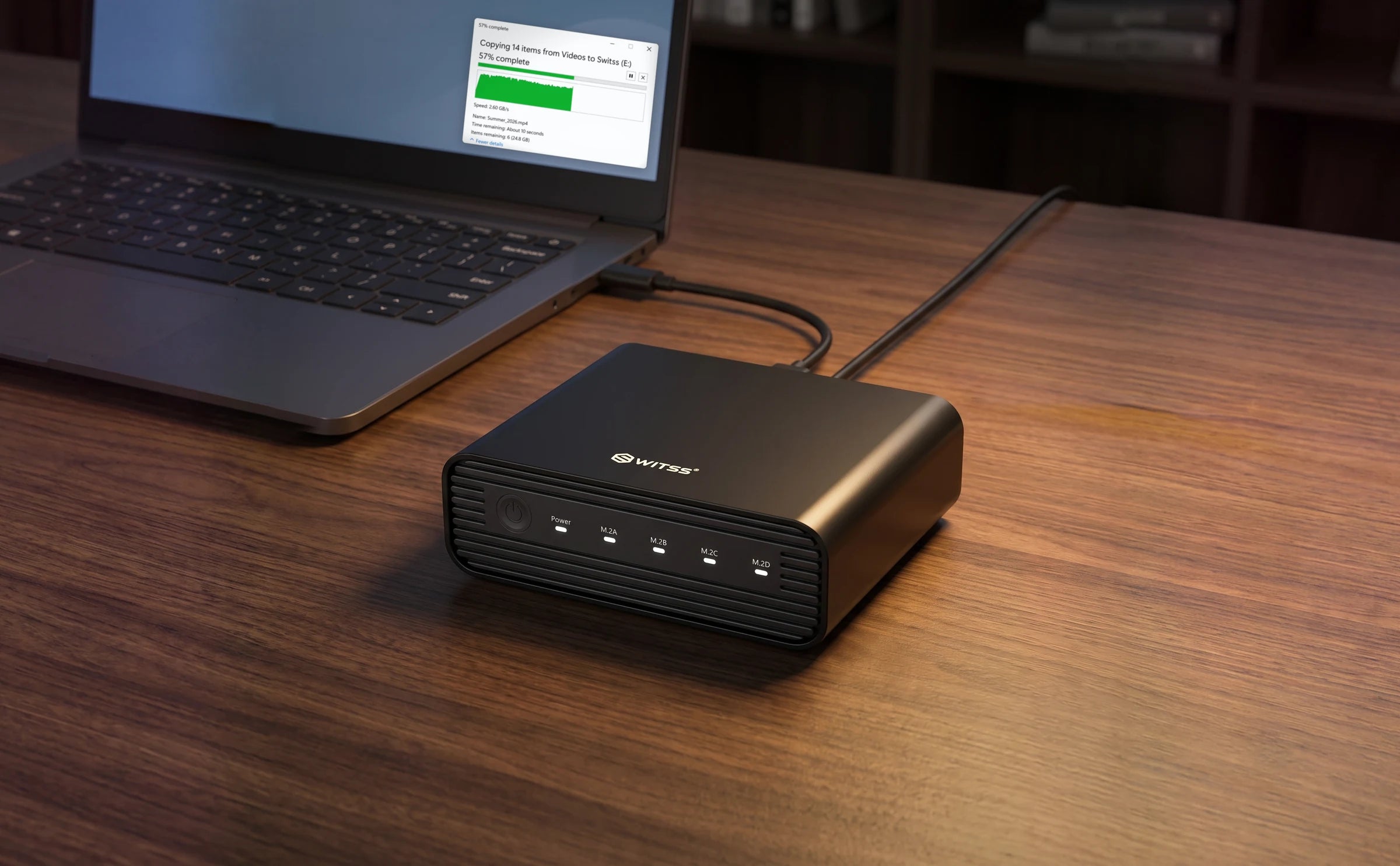

Speed
Big files?
Copied fast
Up to 3000 MB/s with SSDs together on USB4, 40 Gbps
More detail
Speed in practice
With several fast NVMe SSDs together in software RAID you reach up to about 3000 MB/s, on a USB4 port of 40 Gbps and with the cable that comes with it. One SSD reaches up to 16 Gbps. It also works on a USB 3.2 Gen 2 port of 10 Gbps, at around 1050 MB/s. What you actually get depends on your SSDs and your port.
3000MB/swith several SSDs
40GbpsUSB4
32TBmaximum
Up to about 3000 MB/s with SSDs together in software RAID on a 40 Gbps USB4 port; one SSD up to 16 Gbps
Which SSD
Which M.2 do I have?

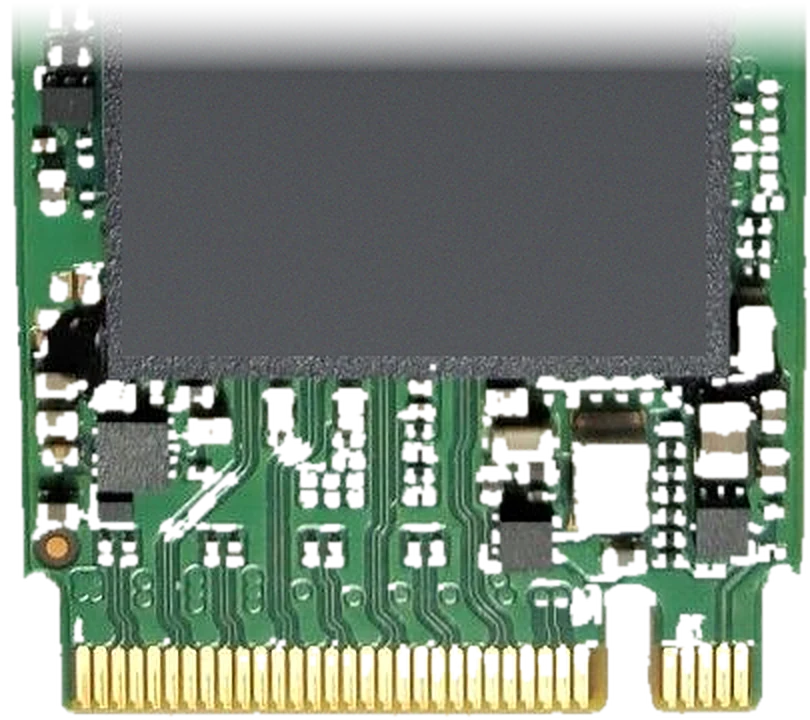

Look at the notch in the gold edge of your SSD
Chips up, gold edge down
See where the notch is
Does the label say NVMe or PCIe? Then it is the right type
-
NVMe, M-key
one notch on the left
fits
-
SATA, M+B-key
two notches
does not work
-
B-key
one notch on the right
does not fit
- Does not fit: mSATA, 2.5 inch and SSDs longer than 80 mm
Installation
Ready in five steps
With a small screwdriver
-

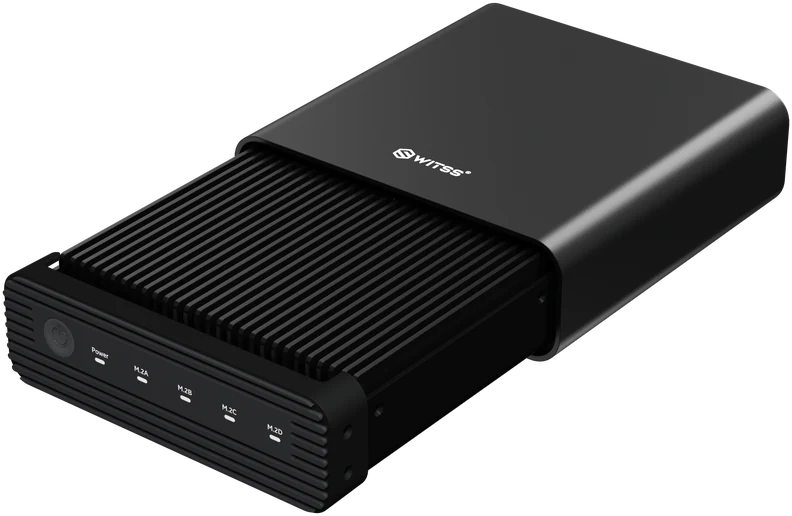

Tray out, heatsink off
Undo the screws on both sides
-

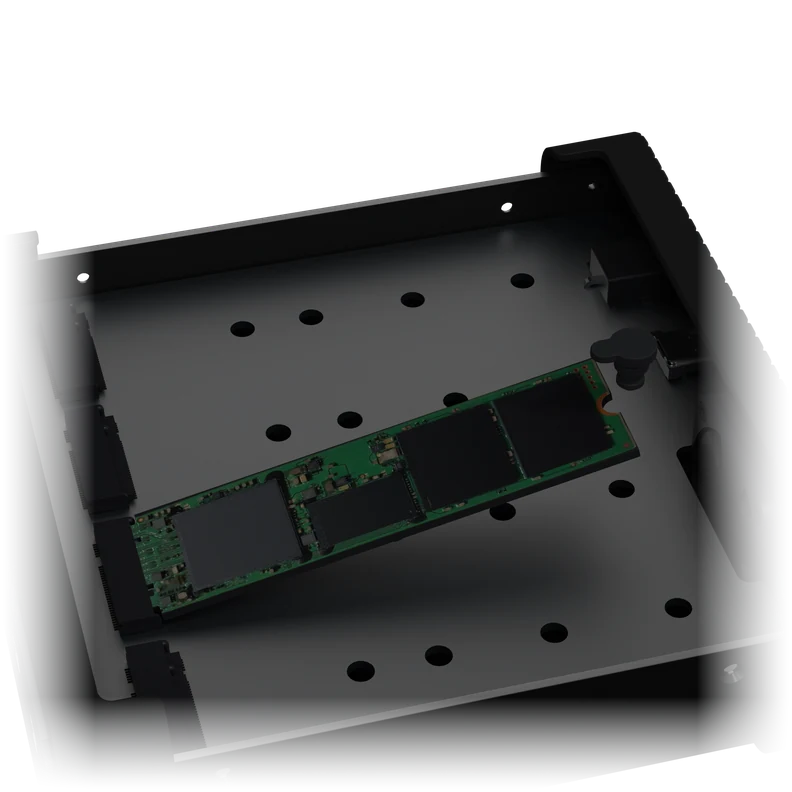

SSD in, plug in
Angled into slot, press the plug in and turn it
-

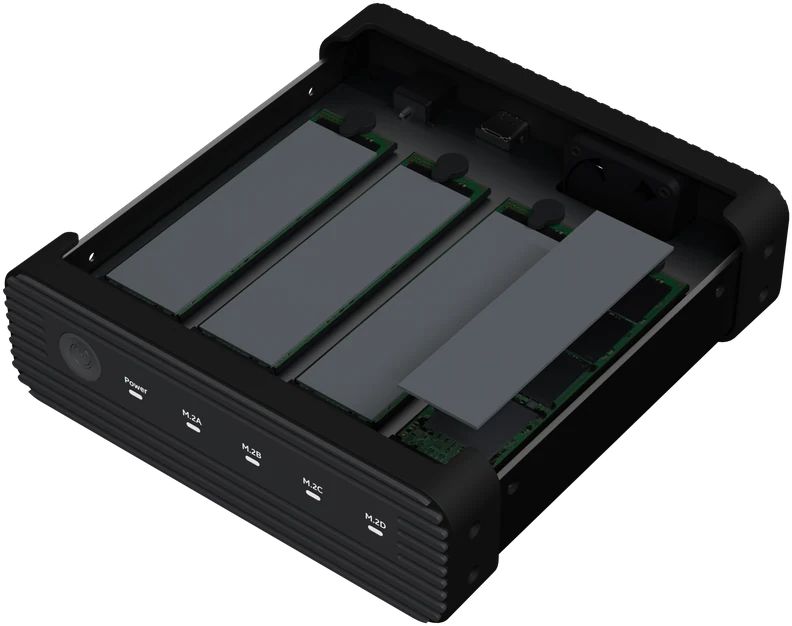

Thermal pads on top
Peel the film, one pad on each SSD
-

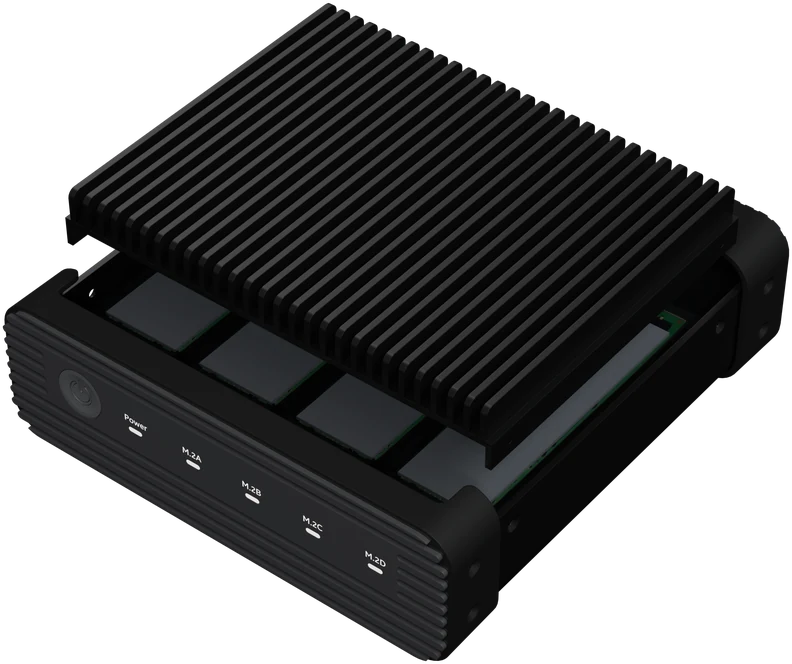

Heatsink on top
Fix it with 4 screws
-

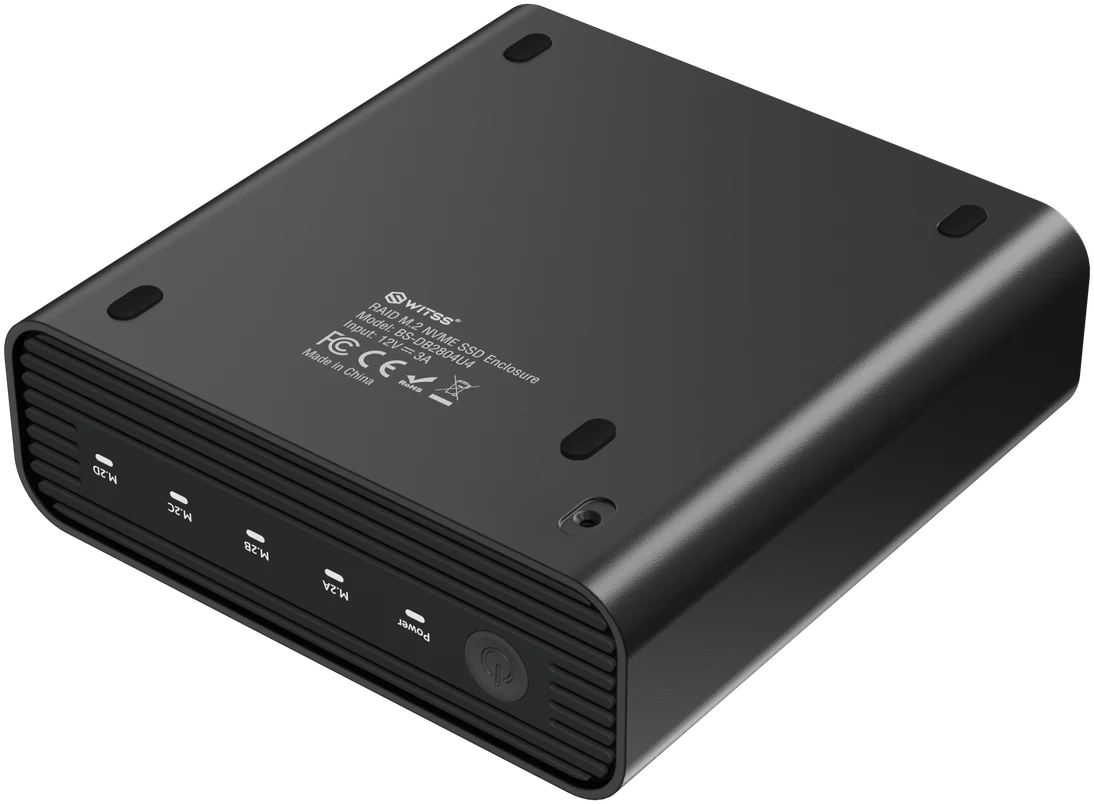

Tray back, feet on
Tray into the enclosure, 4 screws underneath, then fit the feet
Devices
Plug in and go
Works with Windows, macOS, Linux and Android
Operating systems
- Windows
- macOS
- Linux
- Android
- USB-C to USB-Ccable included
- Plug & playno drivers or software
- Power adapter12V/3A, included

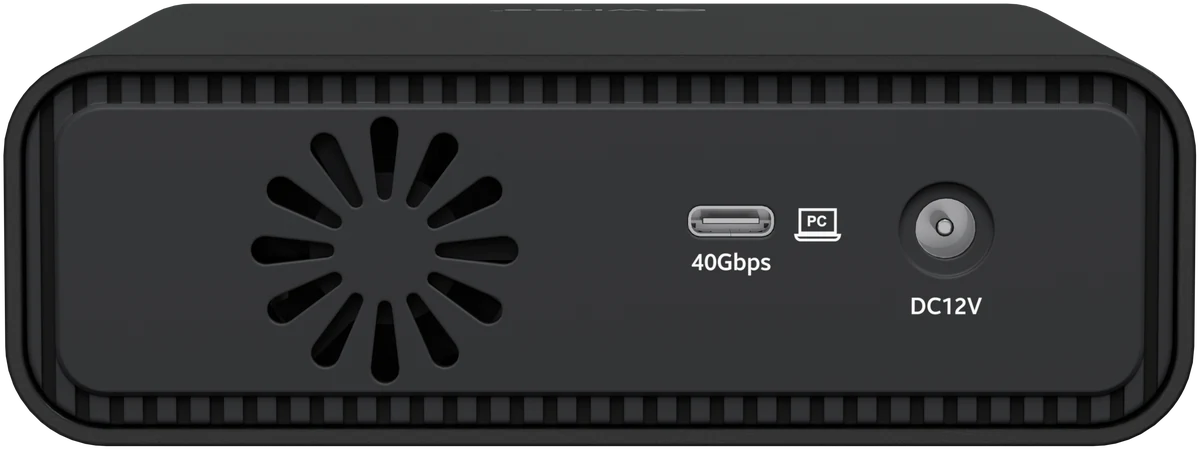

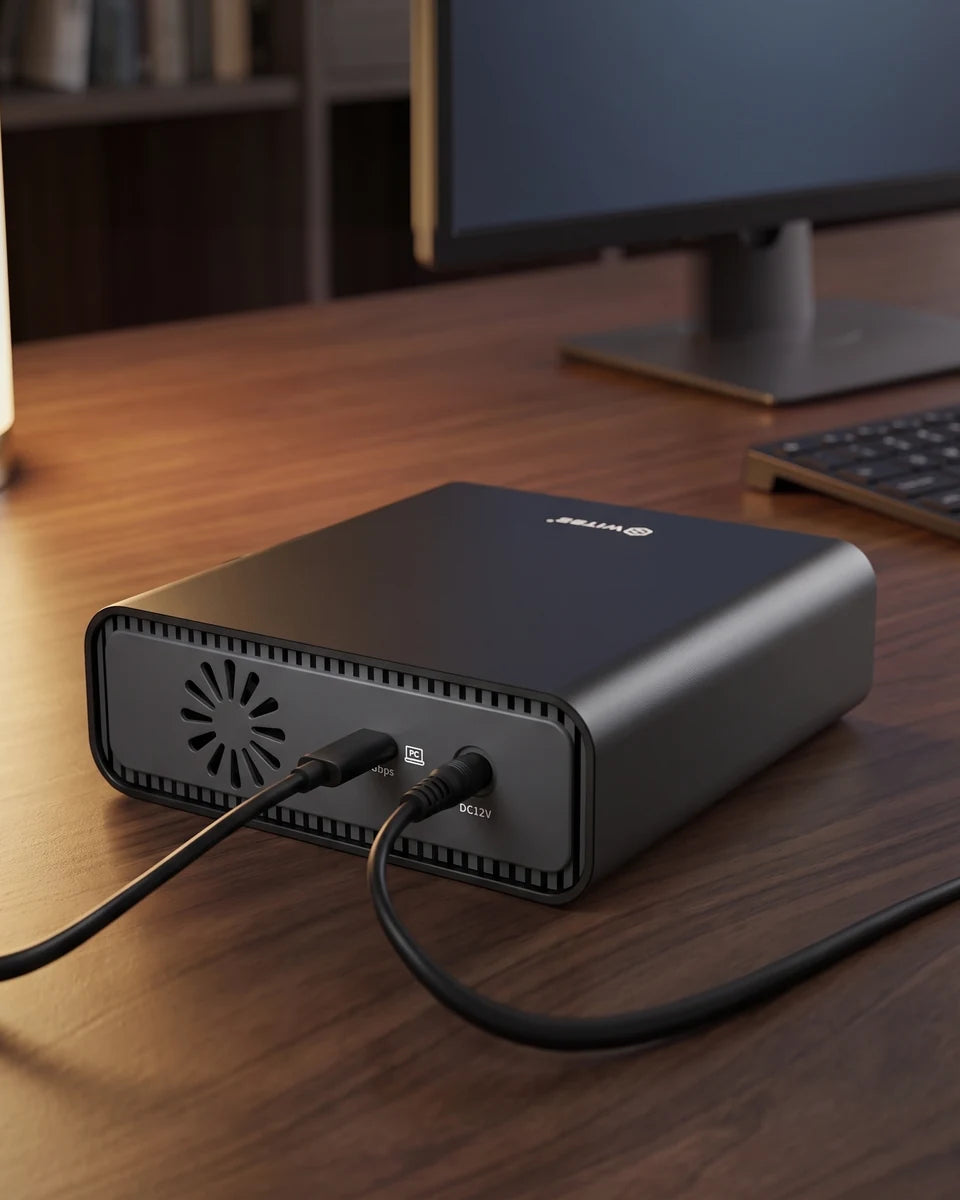

Connections

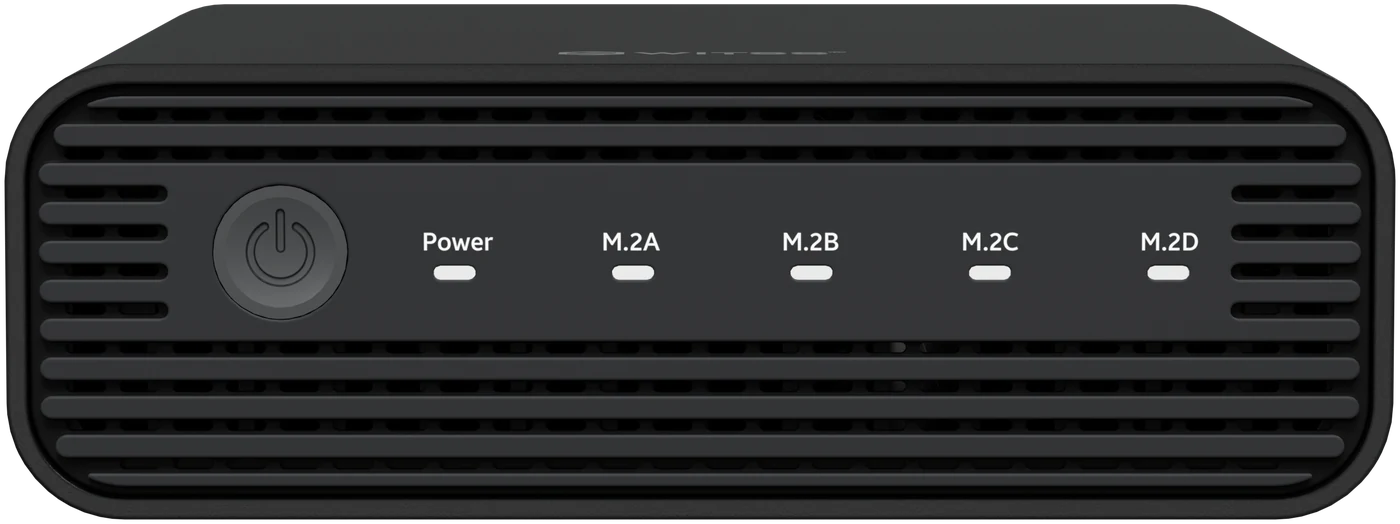

Button at the front, ports at the back
Switch on at the front, connect at the back
- Power buttonSwitches the enclosure on and off
- Power lightOn when the enclosure is switched on
- Light per SSDLights up when an SSD is fitted
- FanRemoves heat
- USB-C port, USB4 40 GbpsCable to your computer
- DC 12VFor the power adapter

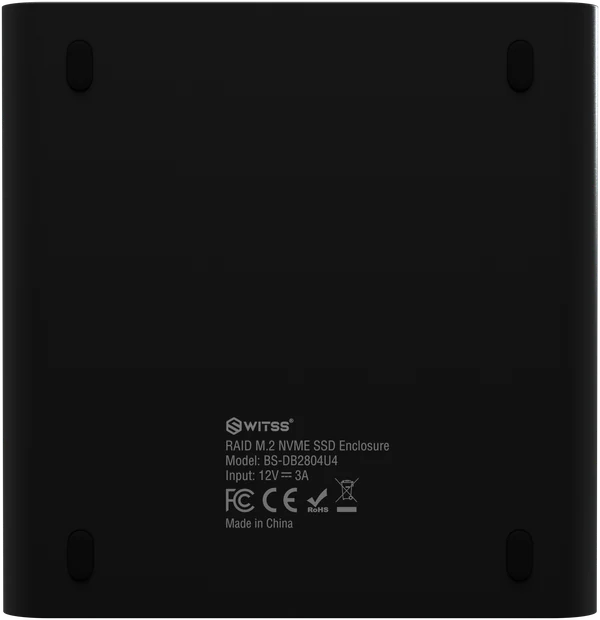

- LabelCE, RoHS and WEEE
Port
Check your port
Speed depends on the port on your laptop or PC
-
USB4 port, 40 Gbps
listed in your laptop’s specifications
up to 3000 MB/s
-
USB 3.2 Gen 2, 10 Gbps
SS 10 next to the port
works, up to 1050 MB/s
-
Only a battery symbol
this port is for charging only
does not work
-
Power adapter 12V/3A
always connect it first, included
needs the adapter to work
Up to about 3000 MB/s with SSDs together in software RAID on a 40 Gbps USB4 port; one SSD up to 16 Gbps
Software RAID
You combine SSDs on your computer
The enclosure has no RAID chip: by default, each SSD appears as its own drive. With software RAID on your computer, you combine SSDs into one drive.
Up to about 3000 MB/s with several fast NVMe SSDs together in software RAID on a 40 Gbps USB4 port.
How to set it up
Windows 10 and 11
Storage Spaces
- Type Storage Spaces in the search box on the taskbar and open it.
- Create a new storage pool and select the SSDs you want to combine.
- Create a storage space in that pool and follow the steps. Windows shows it as one drive.
Mac
Disk Utility
- Open Disk Utility and choose RAID Assistant from the File menu.
- Select the SSDs you want to combine and follow the steps of the assistant.
- Give the set a name and create it. Your Mac shows it as one drive.
Or four separate drives (default)
If you set nothing up, each SSD appears as its own drive. You don't need any software for that.
- Creating software RAID erases all data on those SSDs. So do it before you store files.
- Software RAID is not a backup: keep important files somewhere else too.
- A software RAID set only works on the system you create it on: Windows and Mac cannot read each other's sets.
- Keep all SSDs of the set in the enclosure and keep the enclosure connected.
- Preferably use identical SSDs of the same size.

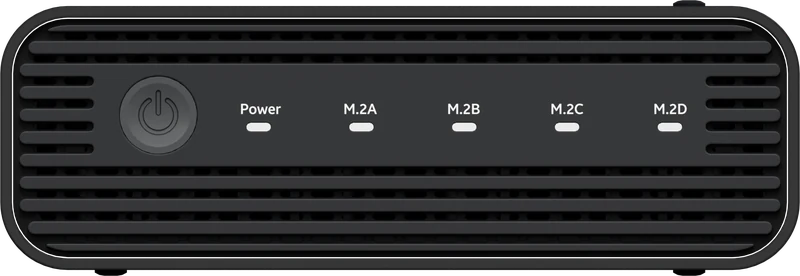

Dimensions
Compact on your desk

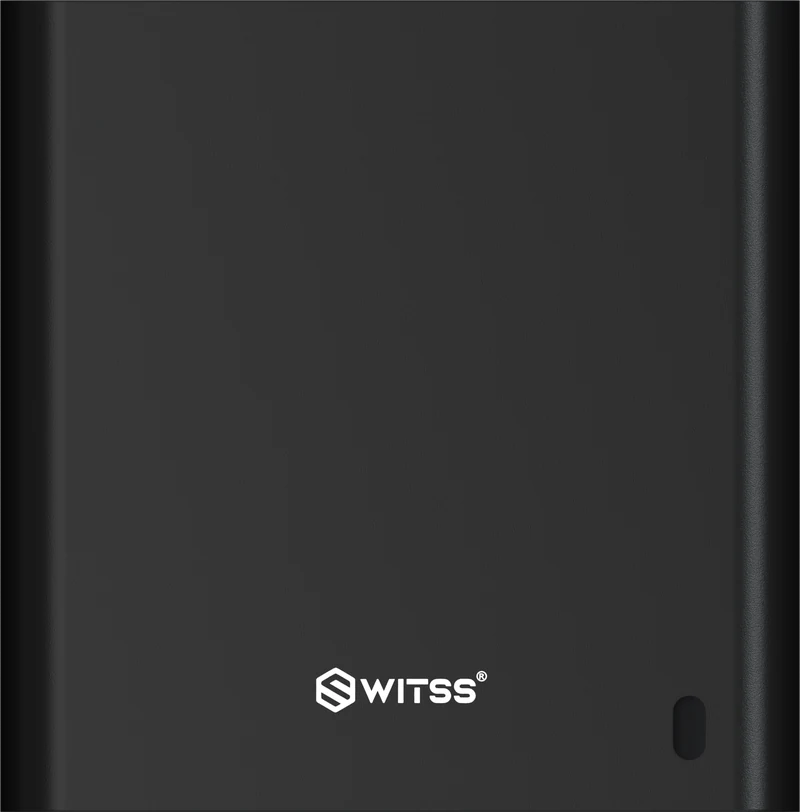

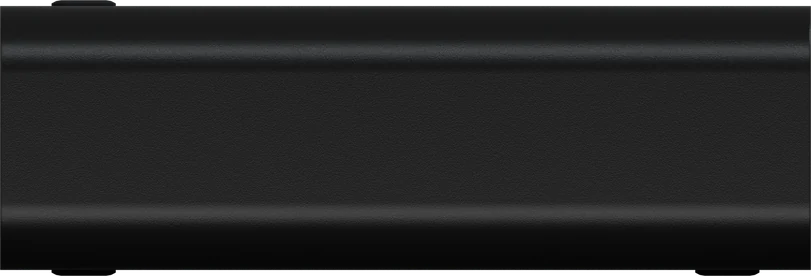

How big the enclosure is, next to a bank card
124mmwide
126mmdeep
41mmhigh
In the box
What’s in the box
Supplied without M.2 SSDs
On top: enclosure and manual
Underneath: cable, adapter, thermal pads, plugs
| Part | Qty |
|---|---|
| 1Switss® 4-bay M.2 enclosure | 1× |
| 2USB-C to USB-C cableUSB4, 40 Gbps | 1× |
| 3Power adapter 12V/3AWith EU plug | 1× |
| 4Thermal padOne on each SSD | 4× |
| 5Silicone plugs2 spare | 6× |
| 6Manual | 1× |
What do you use it for?
Edit video and photos
Work directly from the drive in your editing or photo software. Heatsink and fan keep the SSDs cool, even on long transfers.
Your archive in one place
Keep your photo and video archive together, on separate drives or combined with software RAID. Software RAID is not a backup: keep important files elsewhere too.
Lots of space on your desk
Up to 32 TB in one enclosure of 124 by 126 mm, with its own power adapter.
Specifications
| Specification | SW-M2-4B40 |
|---|---|
| Connection | USB4 (40 Gbps) via USB-C, also on USB 3.2 Gen 2 (10 Gbps, slower) |
| Speed | Up to about 3000 MB/s with several fast NVMe SSDs together in software RAID on a 40 Gbps USB4 port; one SSD up to 16 Gbps |
| SSD type | M.2 NVMe SSD with M-key, 2230, 2242, 2260 and 2280; SATA M.2 does not work |
| Max. capacity | Up to 32 TB (4 x 8 TB) |
| Power | 12V/3A power adapter, included |
| Mounting | One silicone plug per SSD; heatsink and bottom fixed with screws (small screwdriver needed) |
| Cooling | Aluminium heatsink with 28 cooling fins, thermal pads and a fan |
| Compatibility | Windows, macOS, Linux and Android |
| Installation | No drivers needed; you set up software RAID on your computer |
| Dimensions | 124 × 126 × 41 mm |
| Warranty | 3-year producer guarantee (EU GARAN label) |
Manual & downloads
Order for business
5% off from 2 units · 10% off from 10 units applied automatically in your cart
Invoice with VAT · KvK 76439534 · VAT NL860623646B01
Frequently asked questions
Will my M.2 SSDs fit?
Every M.2 NVMe SSD with M-key fits, in the lengths 2230, 2242, 2260 and 2280, up to 8 TB per SSD. You can fit up to four SSDs; you do not need to fill all four bays. If the label says NVMe or PCIe, you have the right type. Not sure? Check “Which M.2 do I have?” above first.
Does a SATA M.2 SSD work?
No. This enclosure only works with M.2 NVMe SSDs with M-key. A SATA M.2 SSD has two notches in the gold edge and does not work, just like B-key, mSATA, 2.5 inch drives and SSDs longer than 80 mm.
How do I set up software RAID?
The enclosure has no RAID chip: by default, each SSD appears as its own drive. With software RAID on your computer you combine SSDs into one drive: on Windows 10 and 11 with Storage Spaces, on a Mac with Disk Utility. Creating it erases the data on those SSDs, and software RAID is not a backup.
Which port do I need?
A USB-C port that transfers data. On a 40 Gbps USB4 port, several fast NVMe SSDs together in software RAID reach up to about 3000 MB/s; one SSD reaches up to 16 Gbps. On a 10 Gbps port you get around 1050 MB/s. A port with only a battery symbol is for charging and does not transfer data. The enclosure always needs the included power adapter.
Does the enclosure get warm?
An aluminium heatsink with 28 cooling fins rests on your SSDs via thermal pads, and a fan in the rear cap blows the warm air out. That keeps the speed up, even on long transfers. Place the enclosure on a hard, flat surface and keep the ventilation openings clear.
Are SSDs included?
No. This is an empty enclosure: you fit up to four M.2 NVMe SSDs yourself (2230 to 2280) and secure them with the silicone plugs. You need a small screwdriver for that. For software RAID, preferably use identical SSDs. No SSDs yet? Check “Which M.2 do I have?” above first, so you are sure to order the right ones.
Still not sure? Ask your question and a real person usually replies within one working day.
